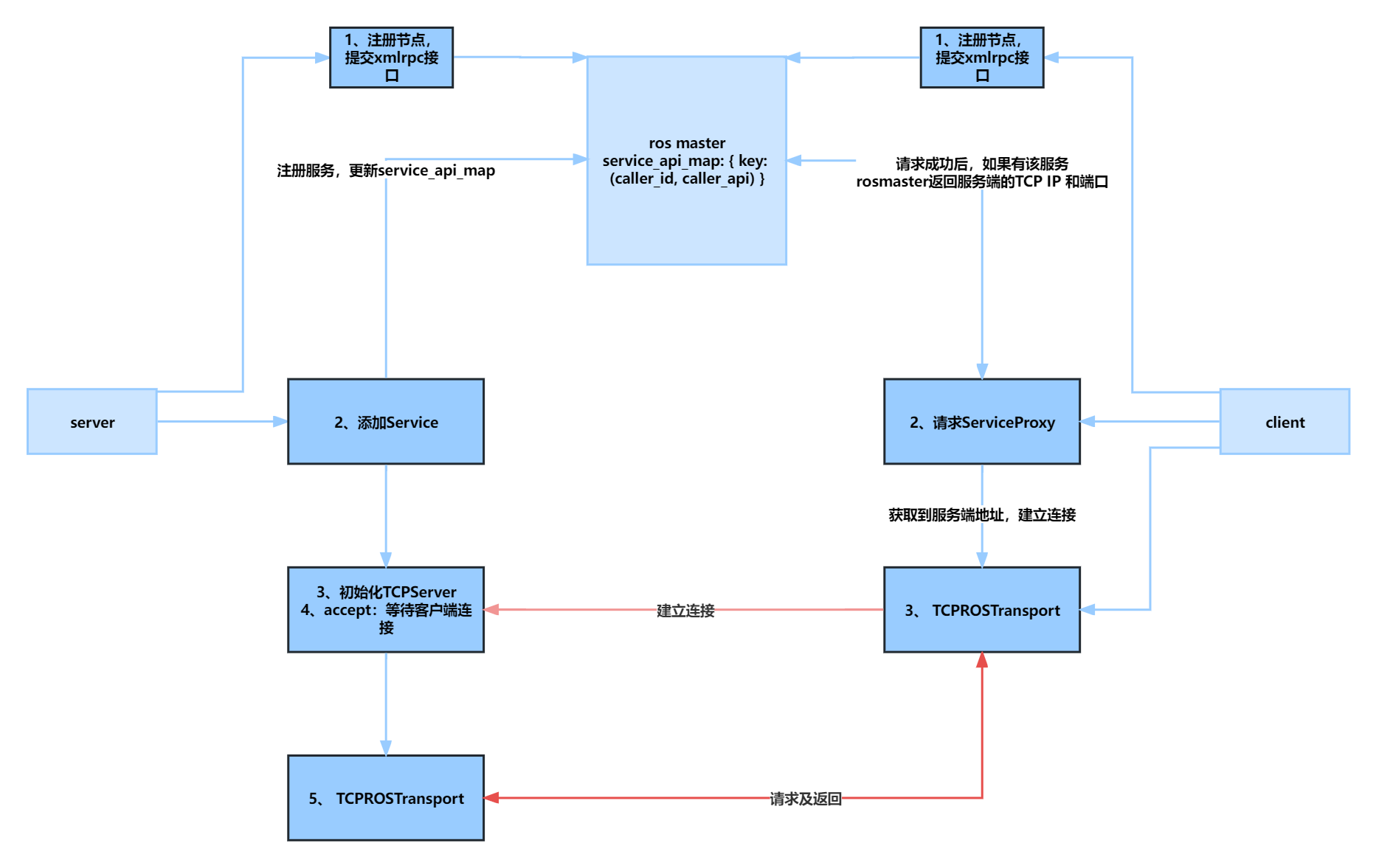

5、service

5.1、流程

客户端和服务端每次请求都要重新连接一次

5.1.1、server端

  • init_node()：节点初始化

  • rospy.Service("/test_service", SetBool, callback)：添加test_service服务

    • 父类ServiceImpl().__init__()

      • 父类_Service().__init__()：赋值service_class,request_class,response_class

      • start_tcpros_server()

        • TCPROSServer(port=port)
        • start_server()
          • TCPServer(self._tcp_server_callback, self.port) -> self._create_server_sock()：创建socket
          • start()
            • run()死循环 -> self.server_sock.accept()：接收客户端连接，以下为接收客户端请求及结果返回
              • self._tcp_server_callback()
                • read_ros_handshake_header(sock, StringIO(), buff_size)：读取头信息
                • 服务调用：service_connection_handler(sock, client_addr, header)
                  • ServiceManager().get_service(service_name)：获取Service实例
                  • transport = TCPROSTransport(service.protocol, service_name, header=header) ：service.protocol为下面实例化的TCPService()
                  • transport.write_header()
                  • threading.Thread(target=service.handle, args=(transport, header)).start()
                    • request = transport.receive_once()：接收客户端请求数据，返回列表
                      • recv_buff(sock, StringIO(), p.buff_size)
                      • if StringIO().tell() >= 4: -> TCPROSTransportProtocol().read_messages() -> deserialize_messages()：反序列化
                    • self._handle_request(transport, request)
                      • convert_return_to_response(self.handler(request), self.response_class) ：转换执行结果序列化，self.handler：就是用户指定的回调函数
                      • transport.write_buff.write(struct.pack('<B', 1))：第一字节为1，代表成功
                      • transport.send_message(response, self.seq)：发送客户端结果
                        • serialize_message() -> 执行数据类型实例化msg.serialize(StringIO()) -> 协议：4字节数据长度 + 数据
                        • self.write_data(StringIO().getvalue()) -> self.socket.sendall(data)
                    • transport.close()

      • self.protocol=TCPService()

    • ServiceManager().register() -> RegistrationListeners().notify_added()
      • 遍历RegistrationListeners()实例的listeners属性，其值都是RegManager()实例，节点实例化的添加的
      • 执行RegManager()实例的reg_added() -> xmlrpcapi(master_uri).registerService()：向ros_master注册服务
        • rosmaster操作：master_api.ROSMasterHandler().registerService()
          • RegistrationManager().register_service()-> _register()
            • RegistrationManager()._register_node_api()
            • Registrations().register()：更新self.service_api_map
              • 数据格式 { key: (caller_id, caller_api) }
                • key：服务名
                • caller_id：节点名称
                • caller_api：TCPROS服务链接

5.1.2、client端

  • init_node()：节点初始化
  • rospy.wait_for_service("/test_service")：阻塞，等待test_service服务直到可访问
    • contact_service() -> master.lookupService()
      • rosmaster操作：RegistrationManager().Registrations().get_service_api(service)：从上面的self.service_api_map 属性中获取信息，返回TCPROS的URIrosrpc://pf2gf7kc:51461
      • socket.socket()
      • s.connect(addr)：重新建立socket连接
      • rosgraph.network.write_ros_handshake_header(s, h)：发送头信息
  • rospy.ServiceProxy("/test_service", SetBool) -> protocol = TCPROSServiceClient()
  • proxy.call(True)：也可以写成ServiceProxy()(True)，ServiceProxy的魔术方法__call__调用了call
    • request = rospy.msg.args_kwds_to_message(self.request_class, args, kwds)：封装请求数据
    • self.transport为空
      • self._get_service_uri(request)：请求rosmaster获取ip和端口
      • transport = TCPROSTransport()
      • transport.connect() -> socket.socket() -> socket.connect() -> self.write_header() -> self.read_header()
    • transport.send_message(request, self.seq)
      • serialize_message() -> 执行数据类型实例化msg.serialize(StringIO()) -> 协议：4字节数据长度 + 数据
      • self.write_data(StringIO().getvalue()) -> self.socket.sendall(data)
    • transport.receive_once()
      • recv_buff(sock, StringIO(), p.buff_size)
      • if StringIO().tell() >= 4: -> TCPROSServiceClient().read_messages(StringIO(), msg_queue, sock)
        • self._read_ok_byte()：获取第一字节数据是否有错误
        • rospy.msg.deserialize_messages()：反序列化
      • 服务端节点返回结果
    • transport.close()：每次调用都要重新连接socket

5.2、代码

  • server.py
import rospy
from std_srvs.srv import SetBool, SetBoolResponse


def callback(d):
    rospy.loginfo(f"client request data---> {d}")
    res = SetBoolResponse()
    res.success = True
    res.message = "Yes, you successful, you send '{}' to me!!!".format(d)
    return res


def main():
    rospy.init_node("service_demo_server", log_level=rospy.DEBUG)
    rospy.Service("/test_service", SetBool, callback)
    rospy.spin()


if __name__ == '__main__':
    main()
  • client.py
import rospy
from std_srvs.srv import SetBool
from random import choice


def ros_server():
    while not rospy.is_shutdown():
        rospy.wait_for_service("/test_service")
        proxy = rospy.ServiceProxy("/test_service", SetBool)
        rospy.loginfo("{:-^100}".format("start call"))
        res = proxy.call(choice([True, False]))
        rospy.loginfo(res)
        rospy.sleep(1)


def main():
    rospy.init_node("service_demo_client", log_level=rospy.DEBUG)
    ros_server()
    rospy.spin()


if __name__ == '__main__':
    main()

5.3、日志
