该项目来源于大佬的动手学ROS2

3.话题之RCLPY实现

有了前面的经验，实现Python版本的发布订阅也非常的轻松了，因为ROS2的API一致性保持的很好，这点值得点赞。

• Node — rclpy 0.6.1 documentation (ros2.org)

1.创建功能包和节点

创建功能包

cd chapt3/chapt3_ws/src/
ros2 pkg create example_topic_rclpy  --build-type ament_python --dependencies rclpy

创建节点文件

cd example_topic_rclpy/example_topic_rclpy
touch topic_subscribe_02.py
touch topic_publisher_02.py

简单编写下代码，依然采用类的形式

发布者

#!/usr/bin/env python3
import rclpy
from rclpy.node import Node

class NodePublisher02(Node):
    def __init__(self,name):
        super().__init__(name)
        self.get_logger().info("大家好，我是%s!" % name)

def main(args=None):
    rclpy.init(args=args) # 初始化rclpy
    node = NodePublisher02("topic_publisher_02")  # 新建一个节点
    rclpy.spin(node) # 保持节点运行，检测是否收到退出指令（Ctrl+C）
    rclpy.shutdown() # 关闭rclpy

订阅节点

#!/usr/bin/env python3
import rclpy
from rclpy.node import Node

class NodeSubscribe02(Node):
    def __init__(self,name):
        super().__init__(name)
        self.get_logger().info("大家好，我是%s!" % name)

def main(args=None):
    rclpy.init(args=args) # 初始化rclpy
    node = NodeSubscribe02("topic_subscribe_02")  # 新建一个节点
    rclpy.spin(node) # 保持节点运行，检测是否收到退出指令（Ctrl+C）
    rclpy.shutdown() # 关闭rclpy

setup.py

    entry_points={
        'console_scripts': [
            "topic_publisher_02 = example_topic_rclpy.topic_publisher_02:main",
            "topic_subscribe_02 = example_topic_rclpy.topic_subscribe_02:main"
        ],
    },

2.编写订阅者

from std_msgs.msg import String


class NodeSubscribe02(Node):
    def __init__(self,name):
        super().__init__(name)
        self.get_logger().info("大家好，我是%s!" % name)
        # 创建订阅者
        self.command_subscribe_ = self.create_subscription(String,"command",self.command_callback,10)

    def command_callback(self,msg):
        speed = 0.0
        if msg.data=="backup":
            speed = -0.2
        self.get_logger().info(f'收到[{msg.data}]命令，发送速度{speed}')

3.编写发布者

from std_msgs.msg import String

class NodePublisher02(Node):
    def __init__(self,name):
        super().__init__(name)
        self.get_logger().info("大家好，我是%s!" % name)
        self.command_publisher_ = self.create_publisher(String,"command", 10)
        self.timer = self.create_timer(0.5, self.timer_callback)

    def timer_callback(self):
        """
        定时器回调函数
        """
        msg = String()
        msg.data = 'backup'
        self.command_publisher_.publish(msg)
        self.get_logger().info(f'发布了指令：{msg.data}')    #打印一下发布的数据

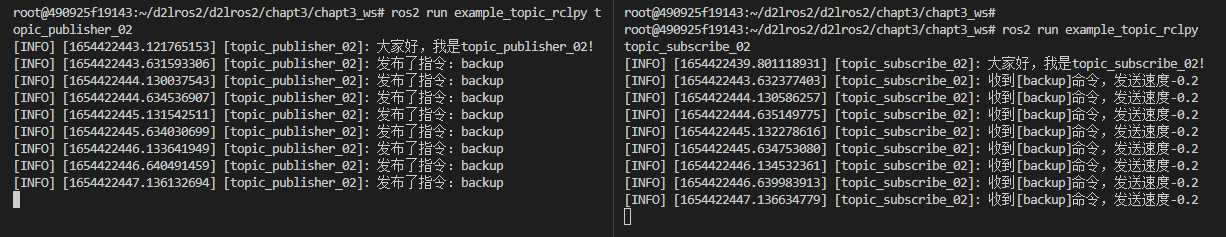

4.运行测试

4.1 发布节点

cd chapt3/chapt3_ws/
source install/setup.bash
ros2 run example_topic_rclpy topic_publisher_02

4.1 订阅节点

cd chapt3/chapt3_ws/
source install/setup.bash
ros2 run example_topic_rclpy topic_subscribe_02

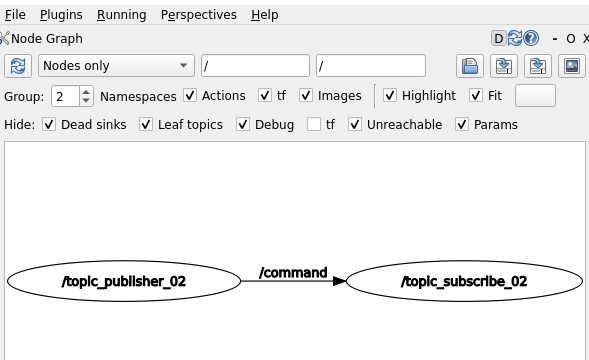

4.2 RQT
